A hard coated polycarbonate sheet for machine guards is the material to specify when a CNC or machining centre viewing window has to stay clear, impact-safe and scratch-resistant under years of production. Standard polycarbonate gives outstanding impact resistance but a soft surface that swarf and cleaning can dull over time. The hard coated grade fixes exactly that – adding a scratch-resistant, abrasion-resistant surface while keeping the toughness that makes polycarbonate the default for machine guard glazing. For plant engineers replacing worn windows, this is the specification that stops the view from going cloudy after a few months.
Thank you for reading this post, don't forget to subscribe!A Real Project: Replacing Worn Windows Across a CNC Machine Line

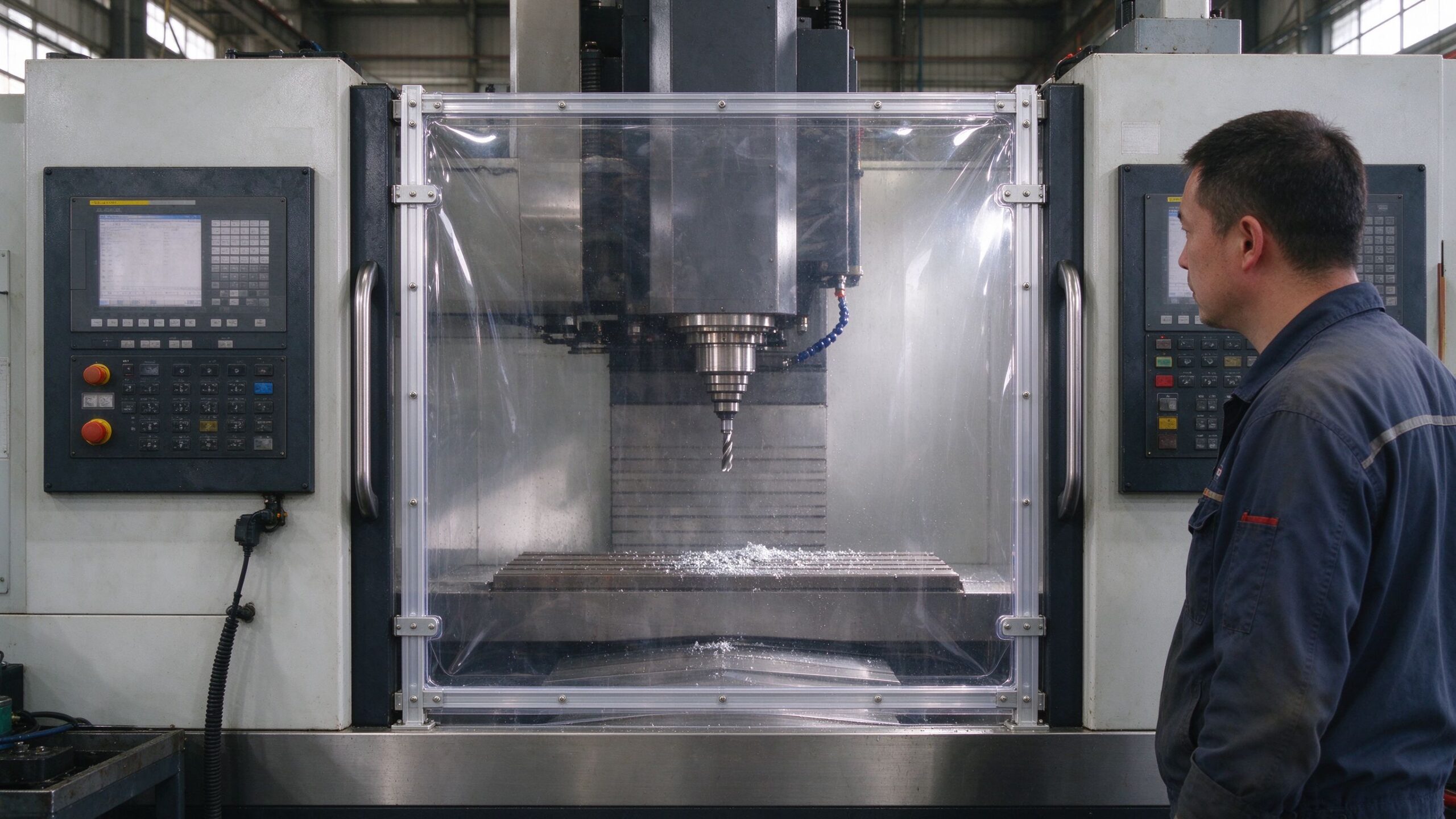

A machining shop with a line of CNC machining centres was replacing its guard windows every few months because the panels kept scratching and fogging under coolant mist and swarf. The fix was a switch to hard coated polycarbonate sheet for machine guards, supplied cut to the existing frame detail.
- Material: hard coated polycarbonate sheet, chosen for the abrasion-resistant surface plus the impact resistance needed around rotating tooling.
- Thickness: 4-6mm panels for the guard windows, sized to the frame span; thicker where the guard carries load or is an access cover.
- Fabrication: supplied cut to drawing with drilled mounting holes and edge finishing, so each panel replaces the worn window without rework.
- Coolant compatibility: the coolant in use was checked against the coating and substrate before the batch was committed.
What to Specify for a Machine Guard Window That Lasts
A machine guard window is a small part with a hard job. Specifying it correctly means balancing impact resistance, surface hardness, coolant compatibility and the fit of the replacement panel. The numbers that matter are the panel thickness, the hard-coat grade, and the dimensional detail of the opening.
- Impact: polycarbonate’s impact strength is the reason it replaces glass in machine guarding – no shattering into dangerous shards.
- Surface: a hard coated grade resists the micro-scratching that clouds standard PC, keeping the view clear through the coating’s life.
- Coolant: check the coating and substrate against the specific cutting fluid; compatibility varies by formulation.
- Fit: supply the drawing or the old window and get panels cut, drilled and edged to mount first time.
The Two Mistakes That Wreck Machine Guard Windows
- Using uncoated polycarbonate in a dirty environment. It is tough but the soft surface scratches and hazes quickly under swarf and cleaning, so the window needs replacing far sooner than it should.
- Ignoring coolant compatibility. A panel that is not compatible with the cutting fluid can soften, craze or cloud – so verify the fluid against the material before ordering a batch.
RP River People Plexiglass supplies hard coated polycarbonate sheet for machine guards and CNC viewing windows – in standard sizes and cut to drawing, with drilling, edge finishing and custom bending to fit your existing guard. We help plant engineers pick the right thickness, hard-coat grade and coolant-compatible grade so the window mounts first time and stays clear. If you are replacing guard windows, send us the opening drawing or the old panel dimensions and we will quote a panel that fits.
Frequently Asked Questions
Why use hard coated polycarbonate for machine guard windows?
Machine guard windows face impact, swarf and cleaning, so standard polycarbonate can scratch and haze. A hard coated polycarbonate sheet carries a hard, abrasion-resistant coating that keeps the viewing window clear far longer, while keeping the impact resistance that made polycarbonate the material of choice for machine guards.
Is hard coated polycarbonate resistant to coolant and cutting fluid?
The hard coating and the polycarbonate substrate differ in chemical compatibility. In practice, coated and uncoated PC both need checking against the specific coolant and cutting fluid in use, because prolonged contact with some coolant formulations can soften or cloud the material. Confirm the fluid compatibility with the supplier before committing a batch.
Can machine guard panels be supplied cut to drawing?
Yes. Replacement machine guard windows are commonly supplied cut to the existing frame detail, with drilled holes, edge finishing and optional bending. Send the drawing or the existing window dimensions and we fabricate the panel to fit, so it mounts first time.
