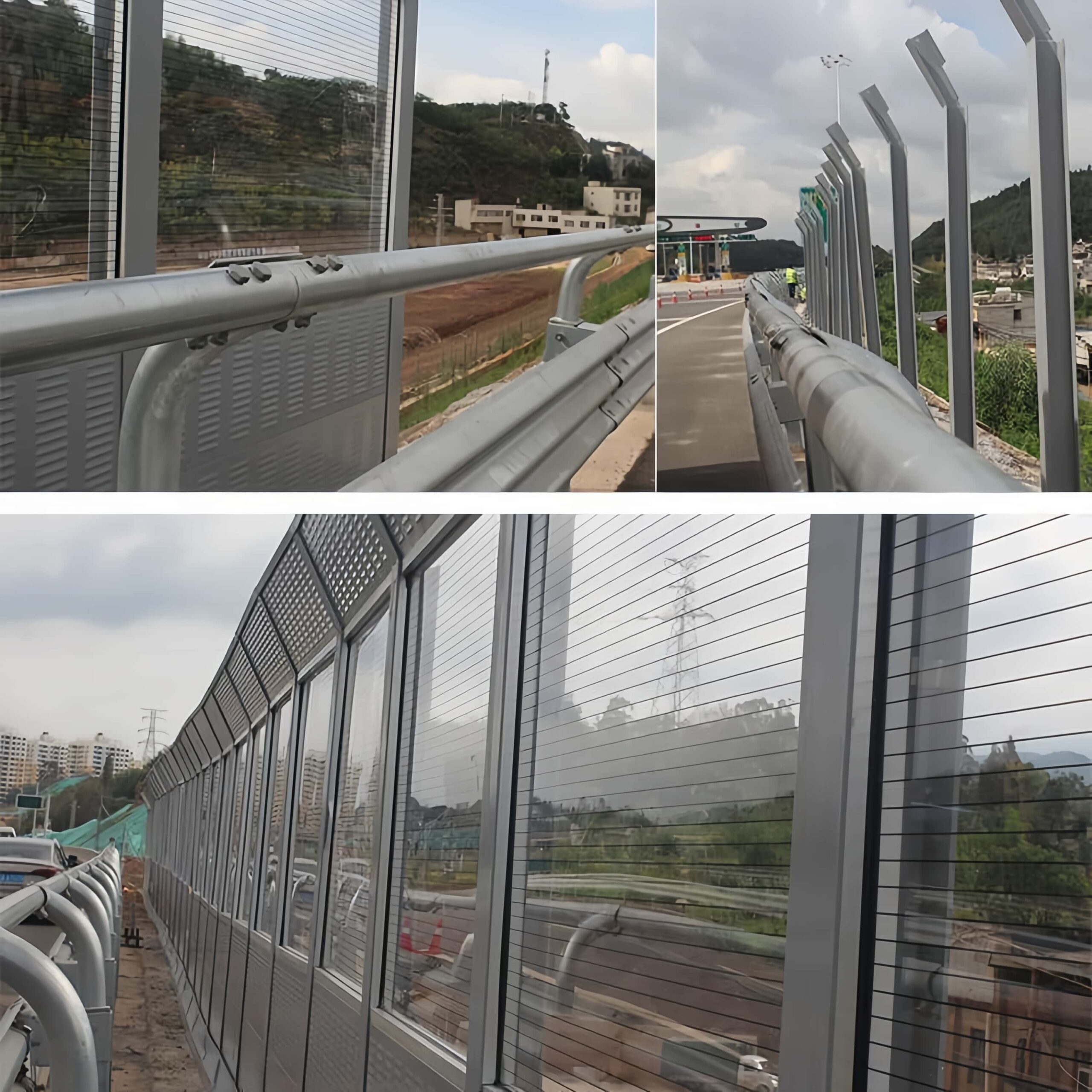

Transparent noise barrier panels installed beside a roadway
Acrylic Sound Barrier Panels Clarity Meets Acoustic Performance for Highway sound walls, railway platforms，Balcony screens, rooftop mechanical screening
Acrylic Sound Barrier Panels Clarity Meets Acoustic Performance for Highway sound walls, railway platforms，Balcony screens, rooftop mechanical screening
Transparent noise barrier panels installed beside a roadway
Transparent noise barrier panels installed beside a roadway
Acrylic Sound Barrier Panels Clarity Meets Acoustic Performance for Highway sound walls, railway platforms，Balcony screens, rooftop mechanical screening
Acrylic Sound Barrier Panels Clarity Meets Acoustic Performance for Highway sound walls, railway platforms，Balcony screens, rooftop mechanical screening
Transparent noise barrier panels installed beside a roadway
,

Acrylic Sound Barrier Panels — Transparent Acoustic & Noise Control Panels

Acrylic Sound Barrier Panels Clarity Meets Acoustic Performance for Highway sound walls, railway platforms，Balcony screens, rooftop mechanical screening

Categories: ,

Acrylic Sound Barrier Panels — Transparent Acoustic & Noise Control Panels

Transparent acoustic panels for noise-control applications where visibility and daylight are design considerations. See our Acrylic Noise Barrier Engineering Guide for system-selection considerations.

Thank you for reading this post, don't forget to subscribe!

Core Technology

RIVER PEOPLE’s SoundShield™ Acrylic Panels utilize multi-layer laminated construction:

  • 3-5 Layer Acoustic Core: Variable-density polymers disrupt sound waves (125Hz-4000Hz)

  • Impact-Resistant Surface: High impact resistance; comparative values should be confirmed against the applicable material grade and test method

  • Edge and mounting details should be designed to limit acoustic leakage; actual performance depends on the complete barrier construction and installation.

Performance Specifications

MetricPerformance Data
Sound Reduction (STC)Published range: 28–32 dB; project-specific acoustic performance should be verified for the tested construction and installation.
Light TransmissionHigh visible-light transmission is available in clear acrylic grades; exact transmission depends on thickness, grade and test method.
Density1.19 g/cm³
Operating Temp-40°F to 180°F (-40°C to 82°C)
Fire RatingGrade-specific; applicable fire or flammability classification should be confirmed for the selected material.

Key Advantages vs. Traditional Barriers

✅ Visual Transparency
Maintain sightlines in sensitive areas (highways, parks, studios)

✅ Weather Resistance
Designed for outdoor use; UV/weather performance and any warranty terms should be confirmed for the selected grade and project conditions

✅ Zero-Maintenance
Non-porous surface resists graffiti, dirt, and corrosion

✅ Rapid Installation
Lower density than glass can reduce handling weight; project-specific weight depends on panel thickness and complete system design.

Industry Applications

  • Transportation: Highway sound walls, railway platforms

  • Architectural: Balcony screens, rooftop mechanical screening

  • Industrial: Factory partitions, generator enclosures

  • Creative: Recording studio windows, outdoor amphitheater baffles

Customization Options

  • Thickness: 10mm to 50mm

  • Tints: Bronze, Grey, Blue (maintains STC rating)

  • Textures: Frosted, Prismatic light-diffusing

  • Mounting: Framed, post-mounted, or ceiling-suspended systems
