A hotel pool manager asked me why the acrylic window at the deep end kept fogging between the pane and the frame. The answer was not the acrylic; it was that the panel had been sized for the shallow end and the seal detail never accounted for the extra pressure at depth. An underwater window pool panel is a structural element, and its thickness, edge register and seal all change with water depth.
How depth drives the panel specification
Hydrostatic pressure rises with depth, so the panel thickness for an underwater window pool is set by how deep the bottom of the window sits and how wide the opening spans. A shallow decorative window may need only 30-50 mm, while a deep swim-through or a large viewing panel can require 75-100 mm or more. The same opening at 1 m and at 3 m of water is a different panel.
Sealing and installation that hold

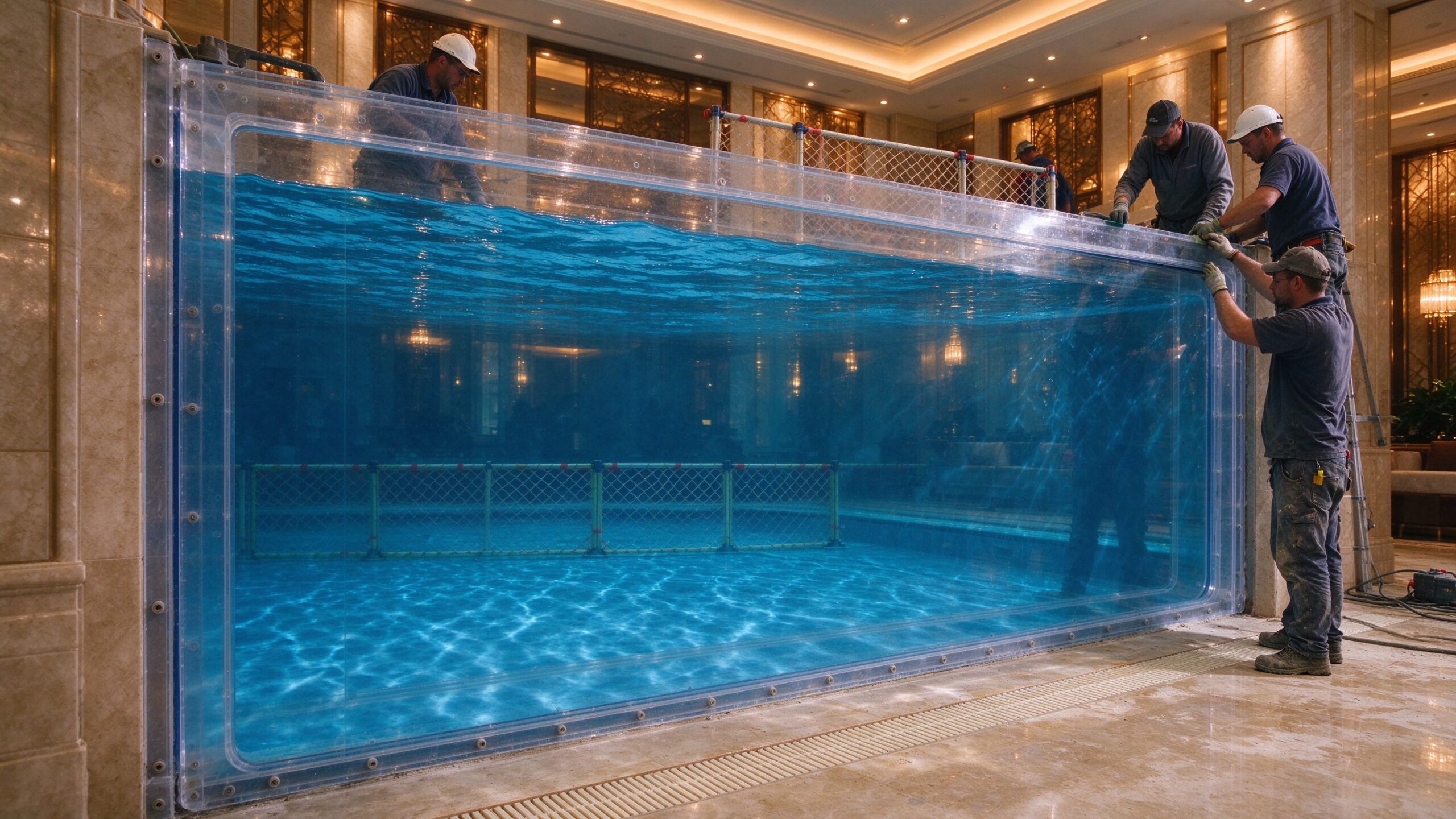

The panel is delivered with a machined edge register and a stainless steel or anodised frame detail already cut to tolerance. On site it is bedded on a continuous gasket so hydrostatic load stays on the panel edges, then clamped. The failure I see most often is a panel fixed hard against a rigid frame so the pressure concentrates at local points; the professional method leaves a compliant edge register and a continuous seal.
The same pressure logic applies to tanks and pools; see our guide to acrylic swimming pool panels and to how thick an acrylic aquarium window should be for the shared engineering.
Frequently Asked Questions
Q: How thick does an underwater window pool panel need to be?
A: It depends on the water depth at the window bottom and the opening span. Shallow windows may use 30-50 mm; deep or large panels can require 75-100 mm or more.
Q: How is the window sealed against leakage in a pool?
A: The panel is bedded on a continuous gasket with a machined edge register and clamped so hydrostatic load stays on the edges; a certified seal system holds the water line.
For a project-specific quotation on underwater window pool panels, email oversales@rpplexiglass.com with your water depth, opening size and frame detail.
